Zero discharge sewage treatment plant solutions are designed to treat wastewater to a standard where no liquid effluent is discharged to the environment — instead, treated water is reused on-site or fully recovered. With water scarcity, stricter discharge norms, and rising operational costs for freshwater, zero discharge has become more than an environmental ambition: it’s a resilient business strategy for industries, commercial complexes, hotels, campuses, and industrial parks.

What “Zero Discharge” means in practice?

Zero discharge doesn’t always imply 100% literal closure of all outlets; practically it means:

• Treated water is reused to meet on-site non-potable needs (cooling towers, HVAC make-up, landscape irrigation, process water, toilet flushing).
• Any residual concentrates (e.g., from RO or brine) are managed, minimized, and either evaporated, crystallized, or transported responsibly.
• No untreated or partially treated wastewater enters municipal drains, surface water, or groundwater.

Key components of a zero discharge STP system

A robust zero-discharge solution combines multiple treatment stages and resource recovery technologies:

1. Pre-treatment & Primary Treatment: Screening, grit removal, equalization and primary settling to remove coarse solids and balance flows and loads.
2. Biological Treatment: MBBR/IFAS/SBR/MBR depending on footprint and effluent quality targets. Membrane Biological Reactors (MBRs) are common for high-quality effluent with lower footprint.
3. Tertiary Treatment: Sand/dual-media filtration, ultrafiltration (UF), or advanced oxidation for removal of fine suspended solids, turbidity, and organics.
4. Advanced Treatment for Reuse: Reverse Osmosis (RO) for high-grade reuse (boiler feed, process water) or UV + chlorine for disinfection where lower-grade reuse is acceptable.
5. Brine/Concentrate Management: Evaporation ponds, brine concentrators, forward osmosis, or zero-liquid discharge (ZLD) modules that crystallize salts — choice depends on volume and pollutant load.
6. Sludge Management: Anaerobic digestion, thickening, dewatering and composting; recovered biosolids can be used as soil conditioners where permitted.
7. Monitoring & Automation: Real-time sensors (pH, turbidity, TOC, conductivity), programmable logic controllers (PLCs), and SCADA for optimized operation and regulatory reporting.

Design considerations

• Water balance & reuse mapping: Identify all on-site demands and seasonal variations so treated water is matched to uses.
• Quality targets: Define required parameters (BOD, TSS, TDS, pathogens, conductivity) based on intended reuse — irrigation, cooling, or process.
• Footprint & modularity: Space constraints often favor MBRs and packaged modular units that scale.
• Energy optimization: Integrate energy recovery (biogas from sludge), variable speed drives for pumps, and energy-efficient aeration to lower lifecycle costs.
• Scalability & redundancy: Design for future expansion and include redundancy on critical units (e.g., parallel RO trains) to maintain zero discharge even during maintenance.
• Regulatory & safety: Comply with local reuse standards and occupational safety; ensure robust containment to avoid accidental overflows.

Operational strategies for maintaining zero discharge

• Preventive maintenance & automation: Automated cleaning cycles and predictive maintenance reduce downtime and unplanned discharges.
• Load management: Equalization tanks and buffer strategies help handle industrial surge loads without compromising effluent quality.
• Concentrate minimization: Using staged RO recovery, brine reduction strategies, and source separation can cut concentrate volumes significantly.
• Resource recovery mindset: Treat the system as a resource plant — recover water, energy (biogas), and nutrients (struvite) where feasible.

Benefits & business case

• Regulatory compliance & risk reduction: Eliminates non-compliance penalties and reduces environmental liability.
• Water cost savings: Reusing treated water reduces reliance on municipal supply and lowers water bills — significant over the plant lifecycle.
• Brand & ESG value: Demonstrates corporate responsibility and improves stakeholder perception; useful for sustainability reporting and green certifications.
• Operational resilience: On-site water independence reduces vulnerability to supply interruptions and seasonal shortages.
• Potential revenue streams: Sale of recovered water, carbon credits, or value from biosolids and nutrient recovery.

Challenges & how to address them

• High capital & energy costs: Offset through phased implementation, energy recovery (biogas), and selecting energy-efficient technologies.
• Concentrate disposal: Evaluate options — beneficial reuse, evaporation/crystallization, or safe off-site disposal — from the project’s start.
• Quality consistency: Use MBRs or advanced tertiary systems and tight process control to meet reuse standards consistently.
• Skilled operation: Invest in training, remote monitoring, and vendor-backed O&M contracts.

Kelvin Water Technologies — enabling zero discharge

Kelvin Water Technologies specializes in designing and supplying modular, scalable sewage and wastewater treatment systems tailored for zero discharge goals. Their approach typically includes:

• End-to-end design: From water balance studies and feasibility to full engineering and commissioning — ensuring systems are right-sized for on-site reuse demands.

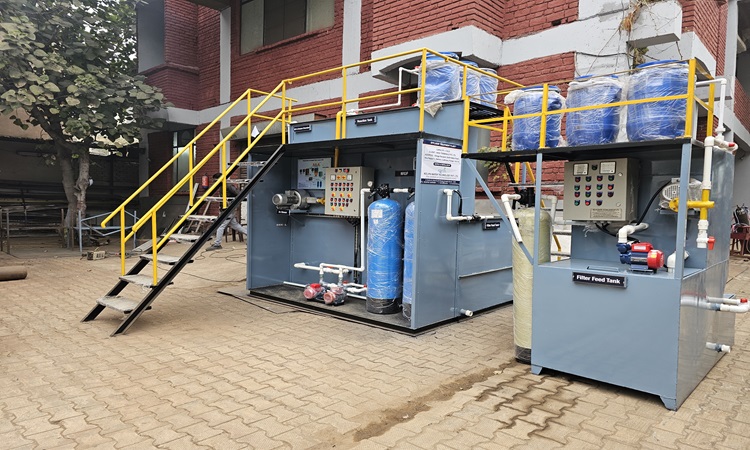

• Modular packaged units: Compact MBR and MBBR based solutions for sites with limited footprint and phased capacity needs.
• Integration of ZLD/Concentrate management: Options for brine concentrators, evaporators, and crystallizers to minimize or eliminate liquid discharge where required.
• Automation & remote monitoring: PLC/SCADA setups that provide real-time process control, alarms, and reporting — important for consistent zero-discharge performance.
• O&M and lifecycle support: Service contracts, operator training, and spare-part strategies to keep systems performing and compliant over decades.

Practical roadmap to implementation

1. Feasibility & water audit — Map inflows and potential reuse points.
2. Define reuse quality — Match treatment train to demands (e.g., cooling vs. boiler feed).
3. Pilot or demo — Trial key technologies (RO recovery, MBR) to validate performance.
4. Detailed engineering & procurement — Focus on modular, scalable units with energy efficiency.
5. Installation & commissioning — Ensure staff training and performance guarantees.
6. Ongoing optimization — Use data analytics and preventive maintenance to sustain zero discharge.

Conclusion

Zero discharge STP solutions are a strategic investment that protect the environment, comply with regulations, and deliver measurable operational savings. Success depends on integrated design — from biological treatment to concentrate management — and disciplined operation. Providers like Kelvin Water Technologies bring the technical expertise, modular products, and lifecycle support required to implement pragmatic zero-discharge systems that transform wastewater into a reliable on-site resource.
