Packaged STP Plant

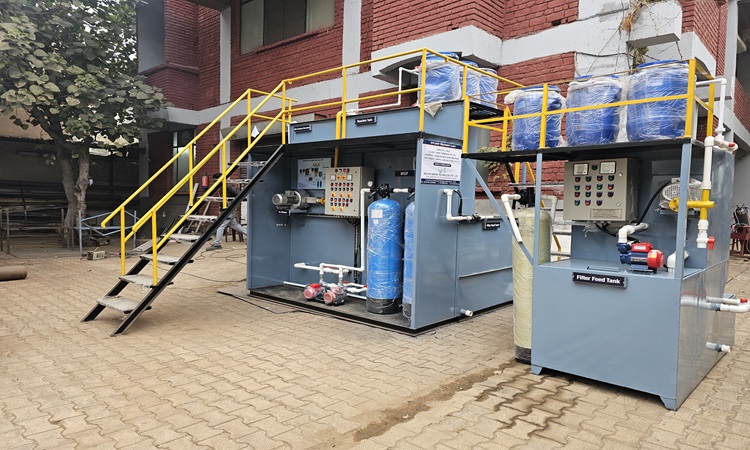

A packaged STP Plant is a prefabricated, modular system engineered to treat domestic and mixed wastewater with minimal civil work, rapid installation, and predictable performance. Unlike conventional, fully civil-based plants that demand large footprints and lengthy construction schedules, packaged STPs arrive as factory-built skids or containerized modules, plug into utilities, and begin delivering compliant effluent within days. For residential complexes, hospitals, hotels, institutions, commercial parks, and small-to-medium industries, this approach offers a reliable path to meet environmental regulations while controlling lifecycle costs.
Process Flow in a Modern Packaged STP
While exact configurations vary, a robust packaged STP will typically include:
1. Screening & Grit Removal – Coarse bar screens and grit chambers protect downstream equipment from rags, plastics, and sand.
2. Equalization (EQ) Tank – Buffers flow and load fluctuations, stabilizing biological performance.
3. Biological Treatment – The heart of the plant. Popular options include:
- MBBR (Moving Bed Biofilm Reactor): Uses free-floating carriers for high biomass retention and resilience to shock loads.
- SBR : Time-based fill–react–settle cycles in a single basin, minimizing footprint.
- MBR (Membrane Bioreactor): Combines activated sludge with membrane filtration for ultra-clear, pathogen-reduced effluent ideal for reuse.
- IFAS/Hybrid Systems: Merge fixed-film media with suspended growth to enhance capacity in the same volume.
4. Secondary Clarification or Membrane Separation – Separates treated water from biomass. MBRs replace clarifiers with ultrafiltration membranes.
5. Tertiary Polishing – Pressure sand filters and activated carbon filters remove residual TSS, color, and organics to meet stringent reuse targets.
6. Disinfection – UV or chlorination ensures microbiological safety.
7. Sludge Handling – Excess biomass is thickened and dewatered (e.g., filter press, screw press). Dewatered cake is disposed per local norms.
Design Considerations That Matter
- Influent Characteristics: BOD/COD, TSS, oil & grease, peak factors, and expected toxicants guide process selection.
- Footprint & Access: Basements, roof decks, or yard setbacks demand compact, vibration-controlled designs with acoustic enclosures.
- Energy Efficiency: Fine-bubble diffusers, high-efficiency blowers (VFD-driven), and smart aeration controls cut power bills.
- Automation & Remote Monitoring: PLC/SCADA, IoT dashboards, and alarms improve reliability and reduce operator dependency.
- Odor & Noise Control: Ventilation, activated media scrubbers, and acoustic housings maintain occupant comfort.
- Disposal vs. Reuse: If water is reused for flushing, gardening, cooling towers, or washing, tertiary treatment is sized accordingly.
- Compliance: Meeting CPCB and local pollution control board norms is non-negotiable; documentation and validation plans should be baked in.
Advantages for Residential and Commercial Users
- Predictable Compliance: Standardized, tested packages reduce “start-up surprises.
- Speed to Operation: Weeks instead of months, critical for project handover milestones.
- Operational Simplicity: Clear SOPs and fewer moving parts reduce training needs.
- Water Security: Treated water reuse offsets freshwater demand and utility costs.
- Aesthetics & Integration: Containerized cladding, low-odor designs, and neat cable/piping layouts blend into premium properties.
Where Packaged STPs Fit Best
- Gated communities, townships, and high-rise apartments with tight basements.
- Hotels, resorts, and hospitals where hygiene and uptime are paramount.
- Commercial complexes, malls, and business parks targeting water reuse.
- Small industries and mixed-use developments requiring plug-and-play compliance.
Kelvin Water Technologies Pvt. Ltd. (KWTPL): Your Partner for Packaged STPs
Kelvin Water Technologies Pvt. Ltd. is a trusted Indian manufacturer and systems integrator specializing in sewage and wastewater solutions, including packaged STP plants tailored to residential, commercial, and institutional applications. KWTPL’s engineering philosophy emphasizes compact design, energy efficiency, and compliance-first performance—from concept to commissioning and beyond.
What KWTPL Delivers
- Technology Range: MBBR, SBR, MBR, and hybrid systems to match influent loads, reuse targets, and plot constraints.
- Capacity Options: Modular packages from small communities to multi-block campuses, with easy future expansion.
- Integrated Tertiary & Disinfection: PSF/ACF skids, UV or chlorination, and optional softening if reuse demands it.
- Automation & Remote Support: PLC/SCADA, IoT-based performance dashboards, and alarm-based service dispatch.
- Noise & Odor Management: Acoustic treatments and ventilation/scrubbing to keep installations tenant friendly.
- A–Z Delivery: Design, supply, installation, testing & commissioning (I&C), operator training, and documentation for regulatory approvals.
- O&M & AMC: Dedicated operations teams, periodic audits, consumables supply, membrane maintenance (for MBR), and emergency callouts.
- Regulatory Compliance: Solutions aligned to CPCB and state PCB discharge and reuse norms, with support on sampling, reports, and handover trials.
Why Choose KWTPL for a Packaged STP?
1. Proven Engineering: Optimized aeration and right-sized reactors mean lower kWh/m³ and stable effluent quality even under peak loads.
2. Fast Project Turnarounds: Prefabricated skids and streamlined site work compress project schedules.
3. Cost Transparency: Clear CAPEX/OPEX visibility, standardized BOMs, and readily available spares.
4. Sustainable Reuse: Tertiary polishing and disinfection help convert waste into a dependable non-potable water source.
5. Service Footprint: Timely O&M, AMC, and training ensure plants stay compliant year after year.
Selecting the Right Packaged STP
- Design Basis Report (DBR): Confirm design flows, loadings, reuse needs, and power availability.
- Space & Layout: Approve GA drawings for access, ventilation, lifting/maintenance clearances, and sludge handling.
- Power & Noise: Verify blower/pump ratings, VFDs, acoustic treatment, and backup power strategy.
- Instrumentation: DO, pH, ORP, flow meters, pressure gauges (MBR TMP), and level sensors for reliable automation.
- Materials & Build: Corrosion-resistant tanks (FRP/MSRL/SS), schedule-rated piping, and IP-rated panels.
- Handover Package: SOPs, spare lists, performance guarantees, and training schedules.
- After-Sales: O&M scope, AMC options, response SLAs, and remote monitoring access.
The Bottom Line
Packaged STP plants bring together compact design, rapid deployment, and reliable compliance—making them the preferred choice for today’s space-constrained, regulation-driven developments. When engineered with the right process (MBBR, SBR, or MBR), supported by quality components, and operated with disciplined O&M, they deliver consistent, reusable water and lower total cost of ownership.
Kelvin Water Technologies Pvt. Ltd. stands out with end-to-end capability—designing, manufacturing, installing, and operating packaged STPs that meet CPCB norms and the practical demands of real sites. If your project needs a plug-and-play solution that is efficient, expandable, and built for long-term compliance, a packaged STP from KWTPL is a smart, future-ready investment.
